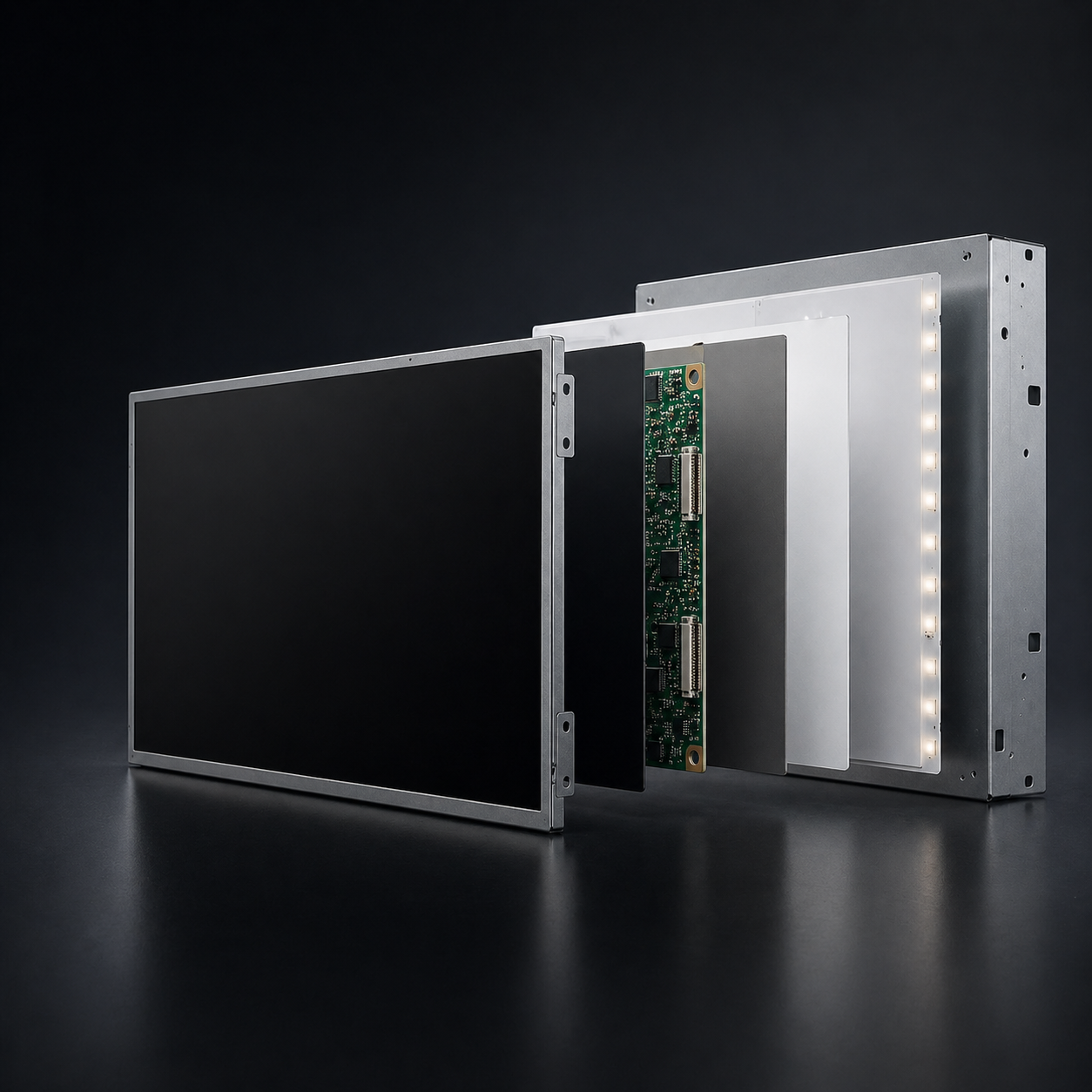

AUO T215HVN05.1 21.5-Inch FHD TFT-LCD Panel for Display Integration
T215HVN05.1 is a 21.5-inch Full HD TFT-LCD display solution for B2B display integration projects, including commercial displays, industrial terminals, kiosk systems, custom monitors, and equipment display interfaces.
For equipment manufacturers and display integrators, this model is not only a screen size or part number. It is a display core that needs to be matched with the right driver board, LVDS cable, backlight solution, touch structure, cover glass, and mechanical housing.
What Is T215HVN05.1?
T215HVN05.1 is a 21.5-inch Full HD display panel platform used as the visual core of a complete display product. It supports 1920 × 1080 resolution, VA Mode Normally Black display mode, 16.7M colors, and dual-channel LVDS signal input.

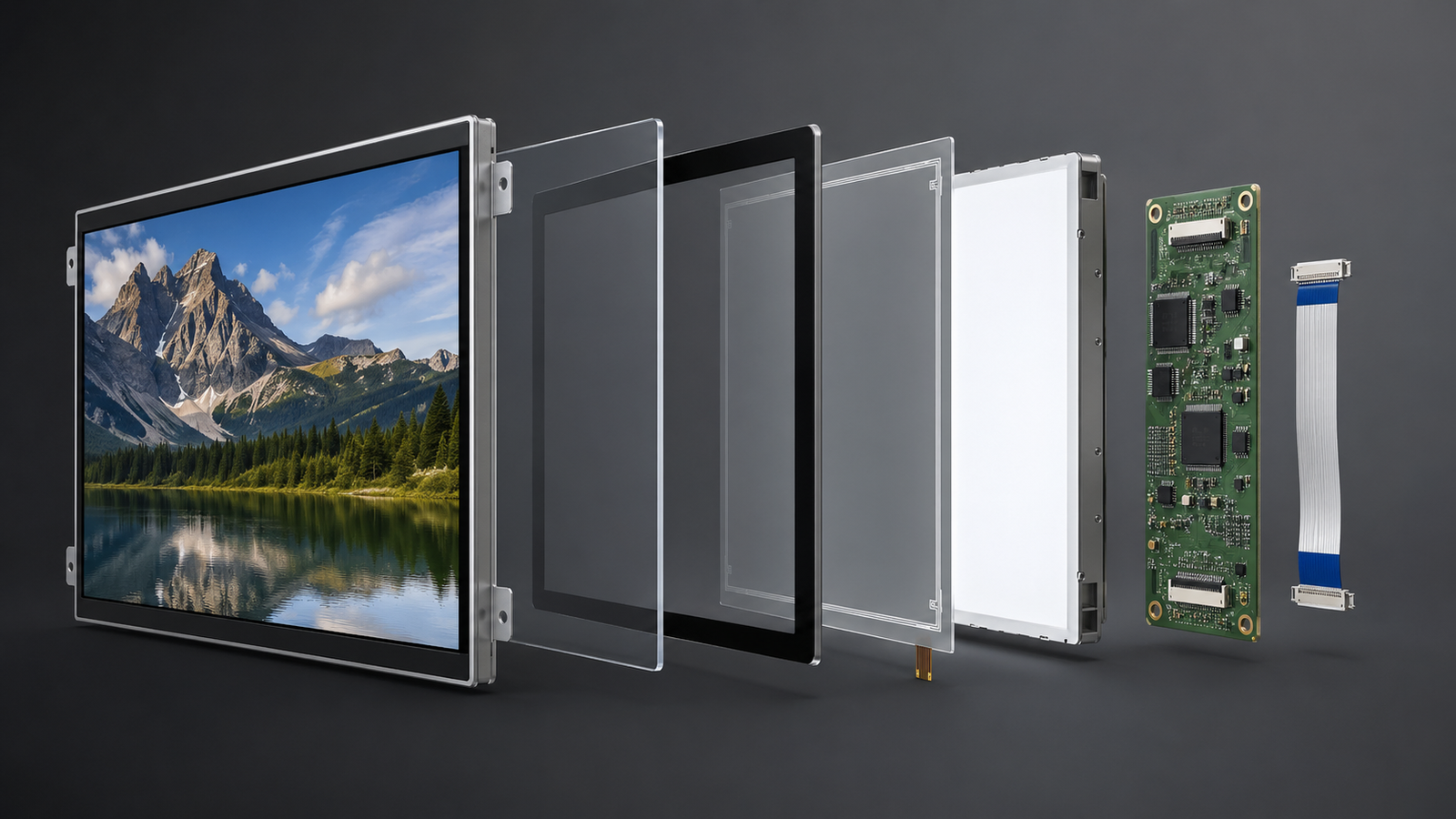

In a real B2B project, the panel itself is only one part of the final display system. Customers still need to confirm the driver board, cable, backlight, touch panel, cover glass, power design, heat dissipation, and mechanical structure before sampling or mass production.
Key Product Specifications
| Model | T215HVN05.1 |
|---|---|
| Brand | AUO / AU Optronics |
| Panel Size | 21.5 inch |
| Product Type | Color TFT-LCD / Open Cell / LCM related display solution |
| Resolution | 1920 × 1080 Full HD |
| Active Area | 476.064(H) × 267.786(V) mm |
| Pixel Arrangement | RGB vertical stripe |
| Display Mode | VA Mode, Normally Black |
| Color Support | 16.7M colors, RGB 6-bit + Hi-FRC |
| Electrical Interface | Dual channel LVDS |
| Connector | 30-pin LVDS connector |
| Power Supply | 5.0V typical |
| Contrast Ratio | 3000:1 typical, based on specified AUO backlight design |
| Viewing Angle | Wide viewing angle, 89° typical in multiple directions under specified test conditions |
| Response Time | 18 ms typical on/off response time |
| Surface Treatment | Anti-Glare, 3H |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |

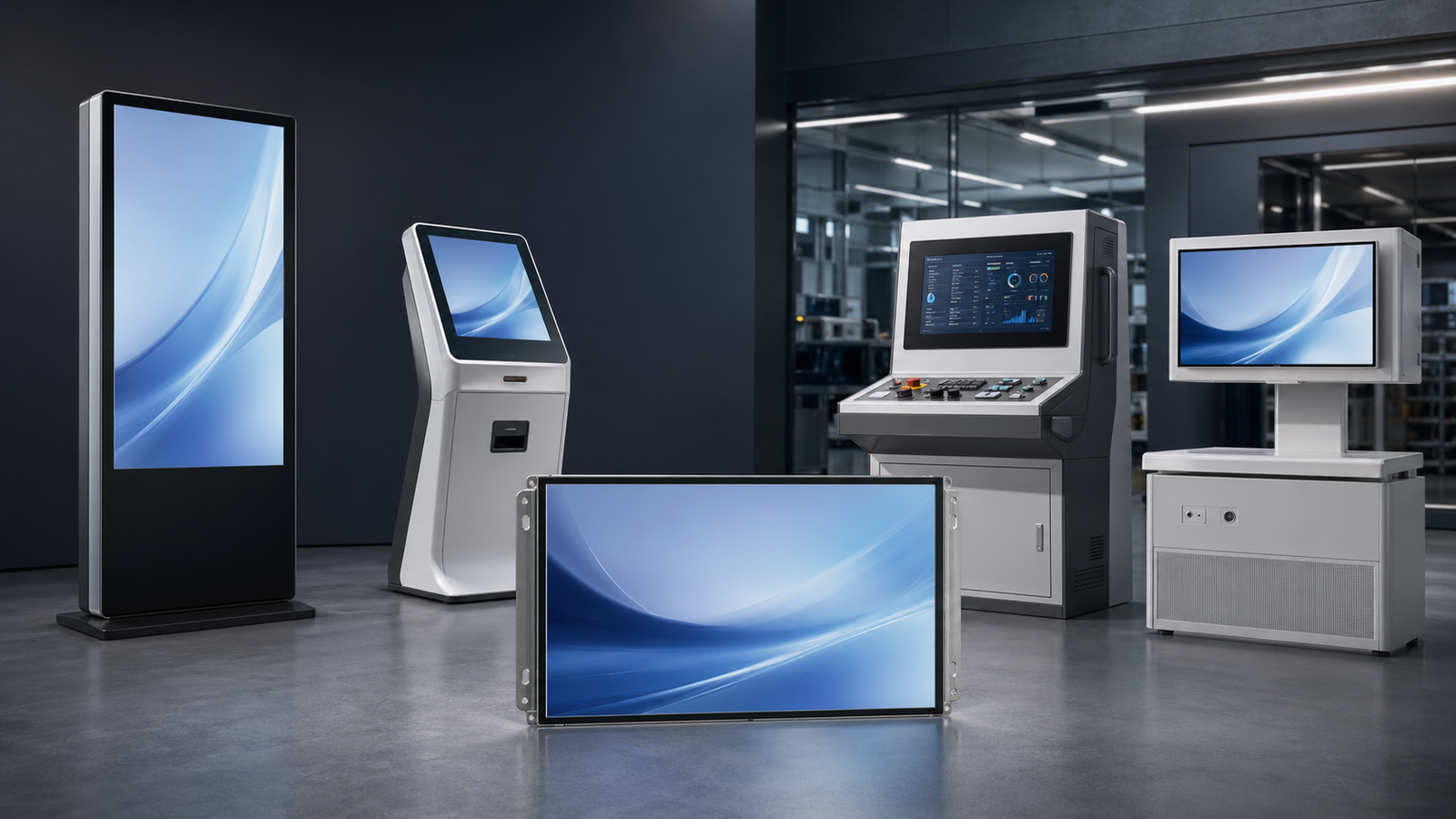

Where Can T215HVN05.1 Be Used?
T215HVN05.1 is suitable for projects that need a 21.5-inch Full HD display platform with LVDS integration. It is more suitable for B2B display development than for direct retail replacement without engineering confirmation.
Commercial Displays
For indoor information displays, advertising screens, retail display terminals, and commercial display products.
Kiosk Systems
For self-service kiosks, payment terminals, information inquiry machines, and check-in terminals.
Industrial Terminals
For control panels, operation terminals, production equipment interfaces, and embedded display systems.
Custom Monitors
For 21.5-inch custom monitor projects that require panel, board, cable, and housing matching.
Touch Display Projects
For projects that combine the LCD panel with PCAP touch, cover glass, bonding, and mechanical design.
Display Integration
For integrators who need panel sourcing, display matching, sample evaluation, and project-based support.
How This Panel Helps Display Projects
In display integration, the real cost is not only the panel price. A wrong panel choice can cause driver board mismatch, cable redesign, touch fitting problems, structural conflict, delayed sampling, and extra communication between purchasing and engineering teams.
Faster Project Evaluation
With a defined 21.5-inch FHD platform, customers can evaluate size, resolution, signal interface, structure, and application fit earlier in the project.
Lower Matching Risk
Panel, driver board, cable, backlight, touch panel, and mechanical structure can be checked together before sampling.
Smoother Production Planning
Procurement, engineering, and production teams can work with the same display configuration before mass production.
Clearer Supplier Communication
Instead of asking only for a model number, customers can send application, quantity, interface, brightness, touch, and structure requirements for faster matching.
Important Selection Boundaries
T215HVN05.1 should not be selected only because it is a 21.5-inch Full HD panel. Similar-looking panels may still have different connectors, timing, backlight design, thickness, mounting direction, or touch compatibility.
| Not a Finished Monitor | It still needs matching components such as driver board, cable, backlight solution, touch panel, cover glass, housing, and power design depending on the final project. |
|---|---|
| Not Automatically a Touch Display | If the project requires touch operation, PCAP touch panel, touch controller, cover glass, bonding method, and mechanical structure must be confirmed separately. |
| Not Automatically an Outdoor High-Brightness Solution | For outdoor or semi-outdoor use, brightness, thermal design, backlight design, protection glass, and lifetime requirement must be reviewed carefully. |
| Not a Universal Replacement | Other 21.5-inch FHD panels may not share the same interface, connector position, signal timing, thickness, or mechanical design. |
| Supply Form Must Be Confirmed | Open cell, LCD panel with backlight, touch display kit, and complete monitor solution are different supply forms. The quotation should match the real project requirement. |
What Customers Should Confirm Before Inquiry
To help Vernon Tech check whether T215HVN05.1 is suitable for your project, please prepare the following information before sending an inquiry.
Project Information
- Final application
- Target market
- Sample or mass production plan
- Estimated order quantity
Display Requirement
- Required screen size
- Required resolution
- Indoor, semi-outdoor, or outdoor use
- Brightness and viewing requirement
Integration Requirement
- Driver board requirement
- LVDS cable requirement
- Touch panel or cover glass requirement
- Mechanical size limitation
Commercial Requirement
- Delivery destination
- Expected lead time
- Packing requirement
- Whether a full display kit is needed
Need T215HVN05.1 for Your Display Project?
Send us your application, quantity, target configuration, and current display requirement. Vernon Tech can help check whether T215HVN05.1 or another 21.5-inch LCD solution is more suitable for your project.
If you are not sure whether you need an open cell, LCD panel with backlight, touch display kit, or complete monitor solution, please include your final product usage and installation requirement in the form.
