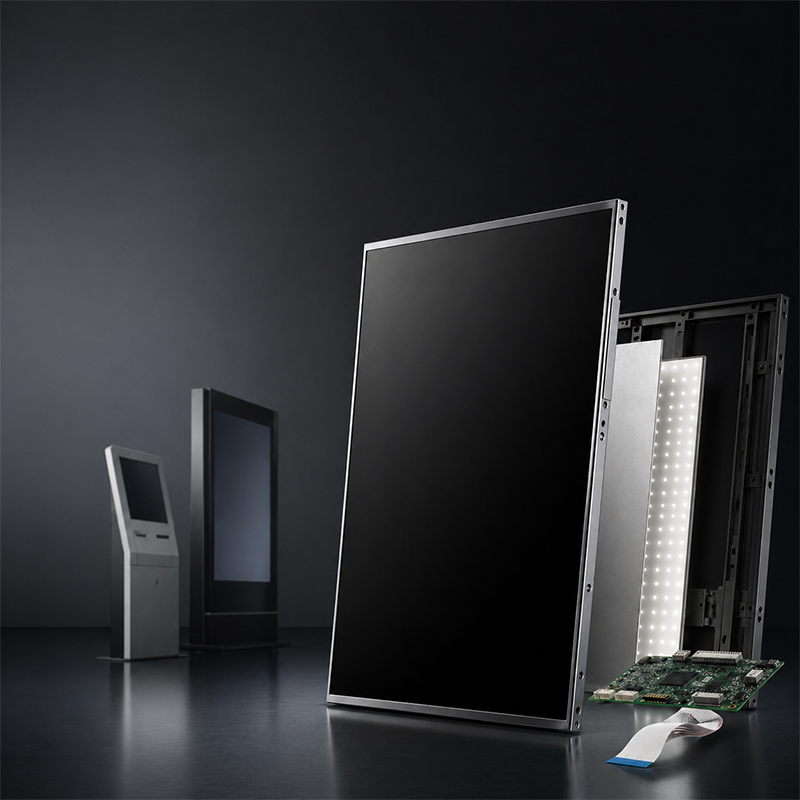

BOE QV185FHB-N82 18.5-Inch FHD LCD Cell for Commercial Display Projects
BOE QV185FHB-N82 is an 18.5-inch Full HD LCD cell for B2B display integration projects, including kiosk terminals, vending machines, digital signage displays, industrial terminals, and custom LCD monitor solutions.
This model is not a finished monitor. It should be matched with the proper backlight structure, driver board, cable, cover glass, touch panel, and mechanical housing according to the final product design.
Quick Product Role
QV185FHB-N82 is suitable for customers who need an 18.5-inch Full HD LCD cell as the visual core of a display product. It is mainly used by display integrators, equipment manufacturers, and solution providers who need to build a complete display module or terminal system.
For B2B projects, this LCD cell should be evaluated together with the backlight structure, driver board, cable, touch panel, cover glass, and mechanical housing.
Official Product Specifications
BOE QV185FHB-N82 is a color active matrix TFT-LCD Open Cell with an 18.5-inch active area and Full HD resolution. It is designed for commercial display integration projects where the final backlight, driver board, touch panel, cover glass, and mechanical structure need to be matched according to the end application.
| Model | BOE QV185FHB-N82 |
|---|---|
| Product Type | TFT-LCD Open Cell |
| Screen Size | 18.5 inch |
| Resolution | 1920 × 1080 Full HD |
| Active Area | 408.96(H) × 230.04(V) mm |
| Outline Dimension | 415.96(H) × 241.84(V) mm |
| Pixel Arrangement | RGB vertical stripe |
| Display Colors | 16.7M colors, real 8-bit |
| Display Mode | Normally Black |
| Interface | LVDS interface, 2 pixel / clock |
| Connector | 30-pin LVDS connector |
| Power Supply | VDD 5.0V typical |
| Power Consumption | 2.4W typical |
| Surface Treatment | Haze 25%, 3H |
| Weight | 330g typical |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Official Applications | Commercial digital display, display terminals for control systems, landscape display |
Suitable Applications
BOE QV185FHB-N82 can be considered for commercial display and equipment integration projects where an 18.5-inch Full HD LCD cell is required.
Kiosk Displays
For self-service terminals, information kiosks, payment terminals, and interactive equipment.
Vending Machines
For vending machine display windows, control screens, and commercial equipment interfaces.
Digital Signage
For commercial signage systems, retail information displays, and indoor display integration.
Industrial Terminals
For control panels, industrial display equipment, and embedded display systems.
Custom LCD Monitors
For 18.5-inch custom monitor projects requiring panel, driver board, and mechanical matching.
Embedded Displays
For equipment manufacturers who need a display core for product integration.
What Customers Need to Confirm Before Quotation
To help us check the right configuration and quotation, please prepare the following project information:
Project Information
- Final application
- Target quantity
- Sample or mass production plan
- Indoor or outdoor use
Display Requirements
- Required brightness
- Backlight requirement
- Touch panel requirement
- Cover glass requirement
Integration Requirements
- Driver board requirement
- Cable and interface requirement
- Mechanical size limitation
- Housing or mounting requirement
Commercial Requirements
- Estimated order quantity
- Delivery destination
- Required lead time
- Special packing requirement
Why Work with Vernon Tech
Vernon Tech supports B2B display customers with LCD panel sourcing, module matching, driver board evaluation, touch panel options, and display integration support.
Instead of only supplying a model number, we help customers check whether the selected LCD cell is suitable for the final product structure, application environment, and production plan.
Panel Sourcing
Support for LCD panel model checking, availability confirmation, and project-based sourcing.
Display Matching
Support for matching driver board, cable, backlight, touch panel, and cover glass requirements.
B2B Project Support
Suitable for equipment manufacturers, display integrators, signage companies, and solution providers.
Send Your Display Project Requirement
If you are checking BOE QV185FHB-N82 for a display integration project, please send us your project details. Vernon Tech can help evaluate panel availability, matching components, and possible configuration options.
Please include your application, target quantity, backlight requirement, touch requirement, driver board requirement, and any mechanical size limitation.
