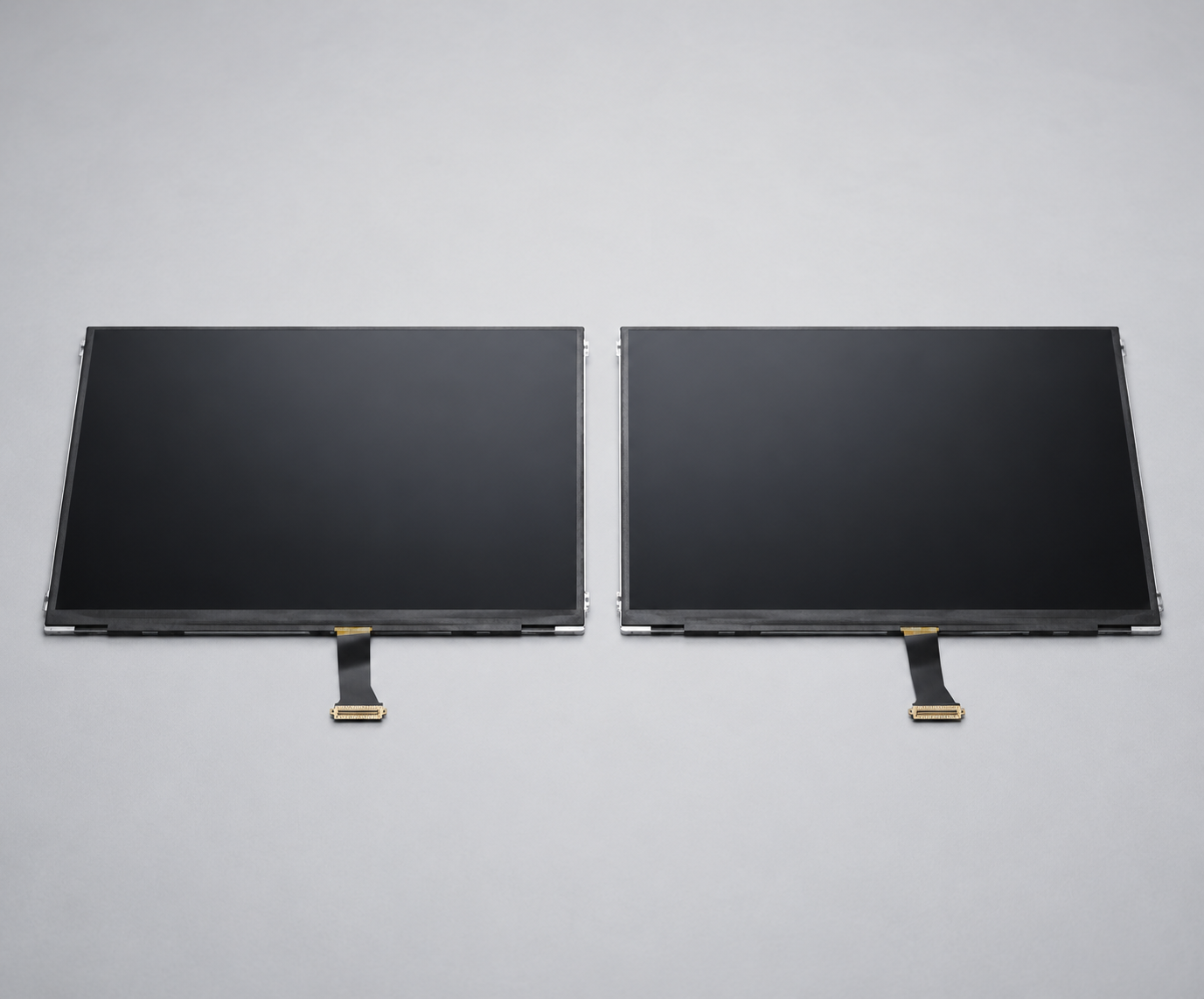

The BOE NV156FHM-N48 and NV156FHM-N4V are two 15.6-inch FHD eDP a-Si TFT-LCD panels that look almost identical on paper, and integrators regularly ask which one to specify. The short answer: both run 1920×1080 at 250 cd/m² over a 30-pin eDP interface, so they are interchangeable in many designs — but they differ in surface finish, viewing angle, contrast, color depth and mechanical thickness. This guide from Vernon Tech (Guangzhou Wanhong Electronic Technology Co., Ltd.) compares the two for embedded and notebook-class display integration.
Published: May 2026 · Last updated: 31 May 2026
What are the BOE NV156FHM-N48 and NV156FHM-N4V?
The NV156FHM-N48 and NV156FHM-N4V are 15.6-inch Full HD (1920×1080) a-Si TFT-LCD display modules from BOE (BOE Technology Group), built on an ADS, normally-black, transmissive panel with a 250 cd/m² typical brightness and a 344.16×193.59 mm active area. Both use a 2-lane eDP (HBR1, 2.7 Gbps/lane) interface on a 30-pin connector, run on a 3.3 V supply, refresh at 60 Hz and ship without an integrated touch layer.
In a real project, the panel is the visual core of a larger display system. An integrator still has to confirm the eDP cable, embedded controller or motherboard, backlight driving (10S4P WLED, 15,000-hour rated), cover lens and mechanical housing before sampling.
These are indoor, notebook-class panels. At 250 cd/m² neither is a high-brightness or outdoor solution, and at a 0 °C to +50 °C operating range neither is an industrial wide-temperature part.
What kind of panel is a 15.6″ eDP a-Si module?
A 15.6-inch eDP a-Si module is an open-form display panel designed to be driven directly by an embedded host over eDP, rather than a standalone monitor. The 30-pin eDP connector and 3.3 V rail mean these panels integrate the same way a notebook screen does, which makes them a fit for compact, board-driven products.
eDP interface, not LVDS
Both panels use eDP (embedded DisplayPort), 2 lanes at HBR1. This matters because an eDP host design will not drop in where an LVDS panel was used previously — the controller, cable and timing are different. Confirm your board outputs eDP before specifying either model.
ADS wide-view, normally black
ADS (a BOE wide-viewing-angle technology comparable to IPS) gives consistent color across viewing positions, which suits panel PCs, portable monitors and shared-viewing terminals. Both panels cover 45% NTSC, adequate for UI, dashboards and general content rather than color-critical work.
NV156FHM-N48 vs NV156FHM-N4V: full specification comparison
The two panels share most core specifications and differ in six areas: surface treatment, viewing angle, contrast, color depth, thickness and weight. The table below is taken from the BOE panel data, not estimated.
| Specification | NV156FHM-N48 | NV156FHM-N4V |
|---|---|---|
| Brand | BOE (BOE Technology) | BOE (BOE Technology) |
| Panel size | 15.6 inch | 15.6 inch |
| Panel type | a-Si TFT-LCD module | a-Si TFT-LCD module |
| Resolution | 1920×1080 FHD, 16:9 | 1920×1080 FHD, 16:9 |
| Active area | 344.16×193.59 mm | 344.16×193.59 mm |
| Outline (H×V×D) | 350.66×216.25×3.2 mm | 350.66×205.69×5.4 mm |
| PCBA / form | Flat PCBA, ≤3.2 mm | Bent PCBA, ≤3.0 mm |
| Weight (max) | 360 g | 380 g |
| Brightness (typ) | 250 cd/m² | 250 cd/m² |
| Contrast (typ) | 800:1 | 700:1 |
| Surface treatment | Anti-glare (matte) | Hard coating (3H) |
| Viewing angle (typ) | 85/85/85/85 | 89/89/89/89 |
| Colors / gamut | 16.2M, 45% NTSC | 262K, 45% NTSC |
| Optical mode | ADS, normally black | ADS, normally black |
| Response (typ) | 30 ms (Tr+Td) | 30 ms (Tr+Td) |
| Refresh | 60 Hz | 60 Hz |
| Interface | eDP 2-lane, HBR1, 30-pin | eDP 2-lane, HBR1, 30-pin |
| Backlight | 10S4P WLED, 15K h, w/ driver | 10S4P WLED, 15K h, w/ driver |
| Supply voltage | 3.3 V (typ) | 3.3 V (typ) |
| Touch | None | None |
| Operating / storage temp | 0–50 °C / -20–60 °C | 0–50 °C / -20–60 °C |
Note: model code, interface and supply form should always be confirmed against the current data sheet before quotation. Tell Vernon Tech whether you need the open module, a panel-plus-cable kit, or a touch-integrated assembly.
Which 15.6″ panel should you specify?
Specify the NV156FHM-N48 when surface glare control, higher contrast and the thinnest flat mechanical matter most. Its anti-glare matte surface diffuses reflections in bright reception, retail-counter and kiosk environments, the 800:1 contrast and 16.2M-color output give a slightly richer image, and the flat 3.2 mm PCBA suits the slimmest housings.
Choose the NV156FHM-N48 for
Portable monitors and panel PCs in bright ambient light, slim front-facing terminals, and designs where matte anti-glare and a flat, thin profile drive the mechanical layout.
Choose the NV156FHM-N4V for
Specify the NV156FHM-N4V when the widest viewing angle and a hard, scratch-resistant surface matter most. Its 89° all-direction viewing suits shared and handheld viewing, and the 3H hard-coated surface stands up better to handling and is a more typical base for an optically bonded cover lens or touch overlay.
Practical fits include medical and industrial handhelds, all-in-one terminals, and any housing where the 5.4 mm bent-PCBA form is acceptable. If you are sourcing a notebook-class replacement panel for an integration project, send the original part number so compatibility can be confirmed.
If neither fits: related and upgraded solutions
If your project needs more than a standard indoor 15.6″ panel, Vernon Tech can match an adjacent solution rather than force-fit one of these two. The most common upgrades requested are touch, higher brightness and a different size.
Add touch
Neither panel includes touch. For interactive terminals, Vernon Tech can pair the panel with a PCAP touch sensor, controller and cover lens as a bonded touch kit.
Need more brightness or another size
For semi-outdoor or sunlit installations, 250 cd/m² is not enough — ask about high-brightness 300–700 nit modules instead. For larger formats, see the AUO T215HVN05.1 21.5-inch FHD panel or the BOE QV185FHB-N82 18.5-inch open cell, or browse the full BOE and AUO LCD module range.
OEM / ODM display assemblies
Vernon Tech supports OEM/ODM builds: panel plus eDP cable, controller board, backlight tuning, cover lens and housing delivered as a tested assembly. Follow display industry updates for panel availability and roadmap changes.
Get a quote on the NV156FHM-N48 or NV156FHM-N4V
Send your application, target quantity and interface, and Vernon Tech will confirm which 15.6-inch eDP panel fits and reply with a USD quotation. As a Guangzhou-based B2B panel supplier shipping worldwide, Vernon Tech responds to inquiries within 12 hours.
Request a USD quote & data sheet
- ✅ Factory-direct BOE & AUO panels — OEM / ODM supported
- 💰 USD pricing & worldwide shipping
- ⏱️ Reply within 12 hours
- 📦 Bulk orders & samples available
- 📝 CE / FCC / UKCA / SASO certificates by destination
Frequently asked questions
What is the difference between the BOE NV156FHM-N48 and NV156FHM-N4V?
Both are 15.6-inch FHD eDP a-Si panels at 250 cd/m². The NV156FHM-N48 has an anti-glare matte surface, 800:1 contrast, 16.2M colors and a flat 3.2 mm PCBA. The NV156FHM-N4V has a 3H hard-coated surface, a wider 89° viewing angle, 700:1 contrast, 262K colors and a 5.4 mm bent-PCBA form.
Can I use the NV156FHM-N48 or NV156FHM-N4V outdoors?
No. At 250 cd/m² both are standard indoor panels and are not readable in direct sunlight. For semi-outdoor or sunlit use, ask Vernon Tech about high-brightness 300–700 nit modules instead.
Are the NV156FHM-N48 and NV156FHM-N4V mechanically interchangeable?
Not automatically. They share the 344.16×193.59 mm active area and 30-pin eDP interface, but the outline depth (3.2 mm vs 5.4 mm), PCBA bend and weight differ, so verify housing clearance and connector position before swapping one for the other.
Do these 15.6-inch panels support touch?
No, both ship without touch. For interactive use, Vernon Tech can supply a bonded PCAP touch kit with controller and cover lens matched to the panel.
Which panel is better for a bright or high-glare environment?
The NV156FHM-N48 is the better choice for glare control because of its anti-glare matte surface. The NV156FHM-N4V uses a 3H hard coating, which is more scratch-resistant but reflects more in bright ambient light.
What is the lead time and MOQ for the NV156FHM-N48 and NV156FHM-N4V?
MOQ and lead time depend on quantity and supply form (open module, panel-plus-cable kit, or touch assembly). Vernon Tech replies within 12 hours with a confirmed USD quotation, and supports both sample orders and bulk production.
Do you provide certificates for export?
Yes, depending on destination and final configuration: CE / UKCA for the EU and UK, FCC / UL for North America, and SASO for the Middle East. Confirm your target market so the correct documentation is prepared.
