| Manufacturer |

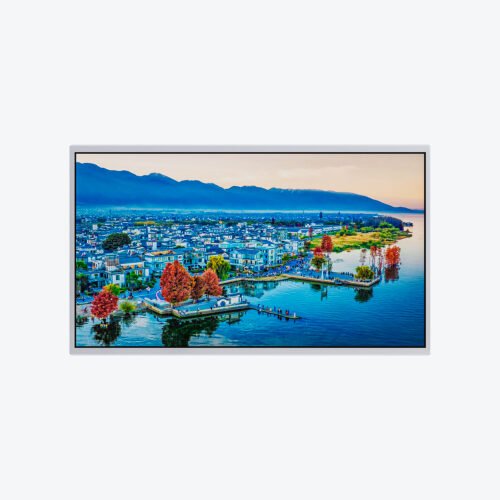

Innolux |
| Model |
M236HJJ-P02 Rev.C1 |
| Diagonal Size |
23.6 inch |
| Panel Type |
a-Si TFT-LCD, LCD Glass, FOB |
| Active Area |
521.28(W) × 293.22(H) mm |
| Outline Dimension |
534.28(W) × 306.252(H) mm |
| Pixel Format |
RGB Vertical Stripe |
| Resolution |
1920(RGB) × 1080, FHD, 16:9 |
| Panel Weight |
TBD |
| Surface Treatment |
Anti-glare (Haze 3%), Hard Coating (3H) |
| Brightness |
0 cd/m² |
| Customized Backlight Option |
300–700 nits adjustable, based on project requirements |
| Contrast Ratio |
3000:1 (Typ.) (Transmissive) |
| Recommended View |
Full Viewing Angle |
| Response Time |
10 ms (Typ.) (G to G) |
| Viewing Angle |
89° / 89° / 89° / 89° (Typ.) (CR ≥ 10) |
| Display Mode |
Super MVA, Normally Black, Transmissive |
| Glass Thickness |
— |
| Transmittance |
4.6% (Typ.) with polarizer |
| Color Support |
16.7M, 72% NTSC |
| Application Product |
Display / Monitor application |
| Refresh Rate |
75 Hz |
| Touch Technology |
No touch |
| Driver IC |
COF, bonded, 6 source chips |
| Interface Type |
LVDS (2 ch, 8-bit), 30 pins, terminal |
| Power Supply |
5.0V (Typ.) |
| Operating Environment |
Operating temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
