| Manufacturer |
BOE |
| Model |

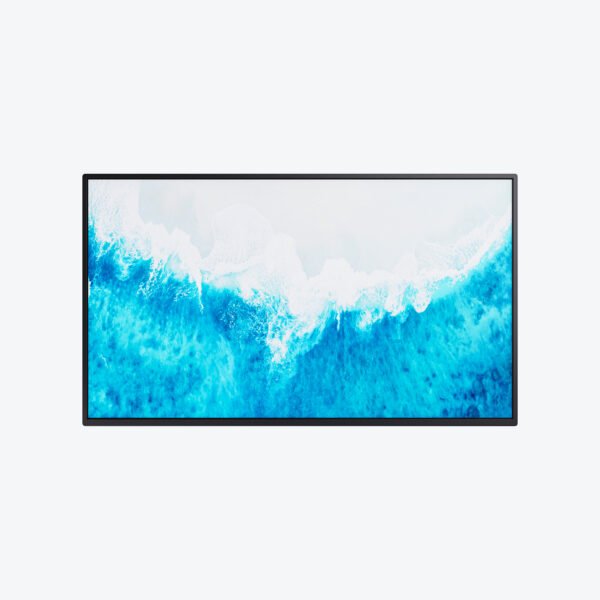

DV320FHM-NN0 |
| Diagonal Size |
32.0 inch |
| Panel Type |
a-Si TFT-LCD, LCD Module |
| Active Area |
698.4(W) × 392.85(H) mm |
| Outline Dimension |
716.2(W) × 415.05(H) × 8.95(D) mm |
| Pixel Format |
RGB Vertical Stripe |
| Resolution |
1920(RGB) × 1080, FHD, 16:9 |
| Panel Weight |
4.00 Kgs (Typ.) |
| Surface Treatment |
Haze 1% |
| Brightness |
400 cd/m² (Typ.) |
| Customized Backlight Option |
300–700 nits adjustable, based on project requirements |
| Contrast Ratio |
1200:1 (Typ.) (Transmissive) |
| Recommended View |
Full Viewing Angle |
| Response Time |
8 ms (Typ.) (G to G) |
| Viewing Angle |
89° / 89° / 89° / 89° (Typ.) (CR ≥ 10) |
| Display Mode |
ADSDS, Normally Black, Transmissive |
| Glass Thickness |
0.50 + 0.50 mm |
| Transmittance |
5.0% (Typ.) with BOE BLU |
| Color Support |
16.7M, 72% NTSC |
| Application Product |
TV / Monitor / Digital Signage |
| Refresh Rate |
60 Hz |
| Touch Technology |
No touch |
| Backlight Type |
WLED, 30K Hours, Built-in LED Driver |
| Interface Type |
LVDS (2 ch, 8-bit), 51 pins, Connector |
| Power Consumption |
40W (Typ.) |
| Power Supply |
12.0V (Typ.) |
| Operating Environment |
Operating temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
