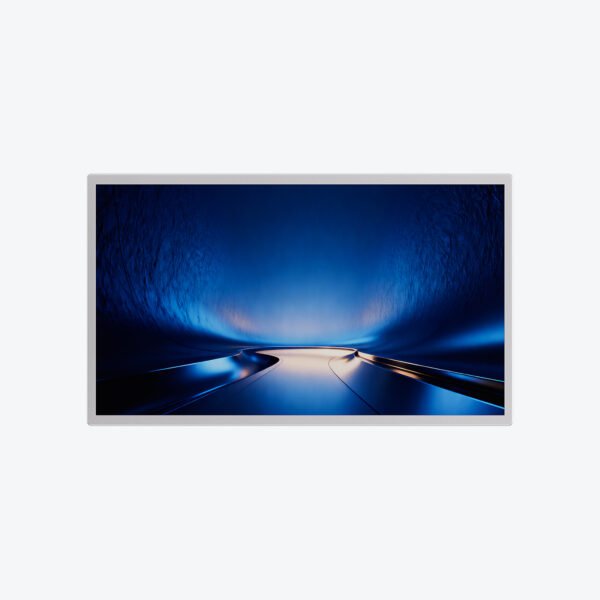

BOE QV185FHB-N82 18.5 inch FHD IPS open cell LCD panel front view

18.5″ Open Cell BOE QV185FHB-N82 FHD HADS Display, 300–700 Nits Adjustable Brightness

$41.00

Features:
  • 18.5″ FHD 1920×1080, 16:9 Landscape
  • HADS Wide Viewing Angle 89°/89°/89°/89°
  • 300–700 nits Adjustable High Brightness (project-customizable)
  • 1200:1 Contrast Ratio, 14 ms G-to-G Response
  • LVDS 30-pin (2 ch, 8-bit), Single 5.0 V Supply
  • Anti-glare (Haze 25%) + 3H Hard-Coating Polarizer
分类： 标签： , , , , , , , , , 品牌：
Key Parameters
Manufacturer BOE
Model QV185FHB-N82
Diagonal Size 18.5 inch
Panel Type a-Si TFT-LCD, LCD Glass, FOB
Active Area 408.96(W) × 230.04(H) mm
Outline Dimension 422.2(W) × 244.1(H) × 1.2(D) mm
Pixel Format RGB Vertical Stripe
Resolution 1920(RGB) × 1080, FHD, 16:9
Panel Weight 330 g (Typ.)
Surface Treatment Anti-glare (Haze 25%), Hard Coating (3H)
Brightness 0 cd/m²
Customized Backlight Option 300–700 nits adjustable, based on project requirements
Contrast Ratio 1200:1 (Typ.) (Transmissive)
Recommended View Full Viewing Angle
Response Time 14 ms (Typ.) (G to G)
Viewing Angle 89° / 89° / 89° / 89° (Typ.) (CR ≥ 10)
Display Mode HADS, Normally Black, Transmissive
Glass Thickness 0.40 + 0.50 mm
Transmittance 3.8% (Typ.) with polarizer
Color Support 16.7M, 72% NTSC
Application Product Display / Monitor application
Refresh Rate 60 Hz
Touch Technology No touch
Driver IC COF, bonded, 3 source chips
Interface Type LVDS (2 ch, 8-bit), 30 pins, terminal
Power Supply 5.0V (Typ.)
Operating Environment Operating temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C
Supply Information
MOQ 10 pcs
Stock In stock · ≤100 pcs ship same day · >100 pcs within 48 h
Warranty 1 year
